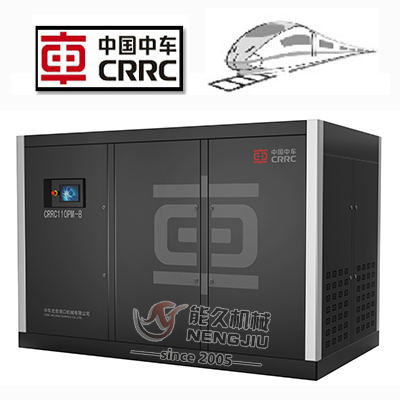

中國中車兩級壓縮螺桿空壓機
中國中車兩級壓縮螺桿空壓機技術參數
|
中車雙級壓縮螺桿空壓機型號 |
名義功率 |
排氣壓力 |
容積流量 |
出口尺寸 |
機組重量 |
外形尺寸 |
|
Model |
Power |
Pressure |
Flow |
Outlet Size |
Weight |
Dimension |
|
KW |
bar |
m3/min |
KG |
（L×W×H）mm |
||
|
CRRC90D/PMⅡ-7 |
90 |
7 |
20.50 |
DN65 |
3300 |
3050×1850×2120（風冷）2850×1850×2120（水冷） |
|
CRRC90D/PMⅡ-8 |
8 |
20.00 |
||||
|
CRRC90D/PMⅡ-10 |
10 |
16.00 |
||||
|
CRRC90D/PMⅡ-13 |
13 |
14.00 |
||||
|
CRRC110D/PMⅡ-7 |
110 |
7 |
24.50 |
DN65 |
3500 |
3050×1850×2120（風冷）2850×1850×2120（水冷） |
|
CRRC110D/PMⅡ-8 |
8 |
23.50 |
||||
|
CRRC110D/PMⅡ-10 |
10 |
19.50 |
||||
|
CRRC110D/PMⅡ-13 |
13 |
16.00 |
||||
|
CRRC132D/PMⅡ-7 |
132 |
7 |
30.00 |
DN80 |
3700 |
3050×1850×2120（風冷）2850×1850×2120（水冷） |
|
CRRC132D/PMⅡ-8 |
8 |
27.50 |
||||
|
CRRC132D/PMⅡ-10 |
10 |
23.50 |
||||
|
CRRC132D/PMⅡ-13 |
13 |
19.50 |
||||
|
CRRC160D/PMⅡ-7 |
160 |
7 |
35.00 |
DN80 |
4100 |
3050×1850×2120（風冷）2850×1850×2120（水冷） |
|
CRRC160D/PMⅡ-8 |
8 |
33.00 |
||||
|
CRRC160D/PMⅡ-10 |
10 |
27.50 |
||||
|
CRRC160D/PMⅡ-13 |
13 |
23.50 |
||||
|
CRRC185D/PMⅡ-7 |
185 |
7 |
41.00 |
DN80 |
4500 |
3050×1850×2120（風冷）2850×1850×2120（水冷） |
|
CRRC185D/PMⅡ-8 |
8 |
39.00 |
||||
|
CRRC185D/PMⅡ-10 |
10 |
33.00 |
||||
|
CRRC185D/PMⅡ-13 |
13 |
27.50 |
||||
|
CRRC200D/PMⅡ-7 |
200 |
7 |
43.00 |
DN100 |
5200 |
4000×2120×2200（風冷）3400×2120×2200（水冷） |
|
CRRC200D/PMⅡ-8 |
8 |
41.50 |
||||
|
CRRC200D/PMⅡ-10 |
10 |
38.00 |
||||
|
CRRC200D/PMⅡ-13 |
13 |
33.00 |
||||
|
CRRC220D/PMⅡ-7 |
220 |
7 |
50.50 |
DN100 |
6000 |
4000×2120×2200（風冷）3400×2120×2200（水冷） |
|
CRRC220D/PMⅡ-8 |
8 |
46.50 |
||||
|
CRRC220D/PMⅡ-10 |
10 |
41.50 |
||||
|
CRRC220D/PMⅡ-13 |
13 |
37.50 |
||||
|
CRRC250D/PMⅡ-7 |
250 |
7 |
56.00 |
DN100 |
6200 |
4000×2120×2200（風冷）3400×2120×2200（水冷） |
|
CRRC250D/PMⅡ-8 |
8 |
52.00 |
||||
|
CRRC250D/PMⅡ-10 |
10 |
43.00 |
||||
|
CRRC250D/PMⅡ-13 |
13 |
40.00 |
||||
|
CRRC280D/PMⅡ-8 |
280 |
8 |
57.00 |
DN125 |
6500 |
4000×2120×2200（風冷）3400×2120×2200（水冷） |
|
CRRC280D/PMⅡ-10 |
10 |
50.50 |
||||
|
CRRC280D/PMⅡ-13 |
13 |
43.00 |
||||
|
CRRC315D/PMⅡ-8 |
315 |
8 |
62.00 |
DN125 |
7100 |
4350×2050×2120（風冷）3850×2050×2120（水冷） |
|
CRRC315D/PMⅡ-10 |
10 |
56.00 |
||||
|
CRRC315D/PMⅡ-13 |
13 |
52.00 |
備注：
1.型號中DⅡ代表中國中車直聯雙級壓縮螺桿空壓機，PMⅡ代表中國中車永磁雙級壓縮螺桿空壓機
2.中車雙級或永磁雙級壓縮螺桿空壓機均有水冷機型選項
3.中國中車壓縮機容積流量是在規定工況下按照ISO1217標準（GB3853）的要求測得
